Description

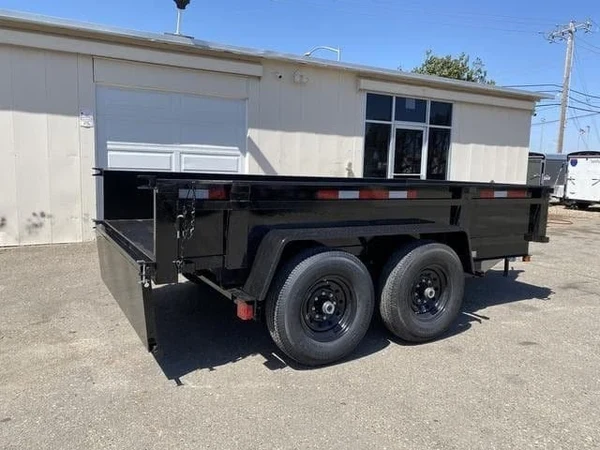

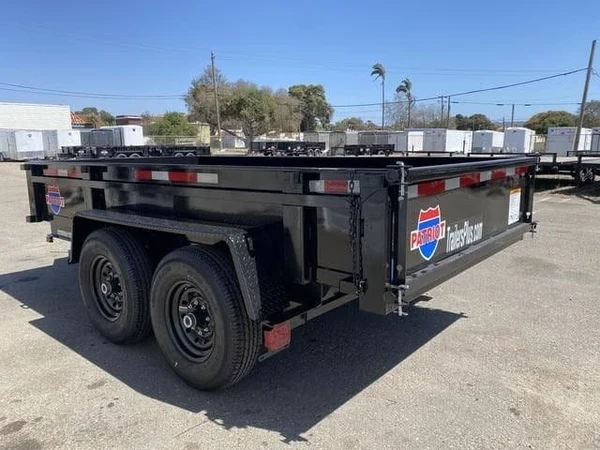

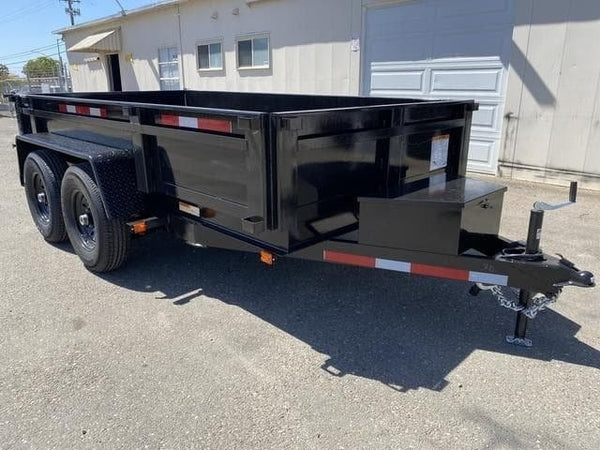

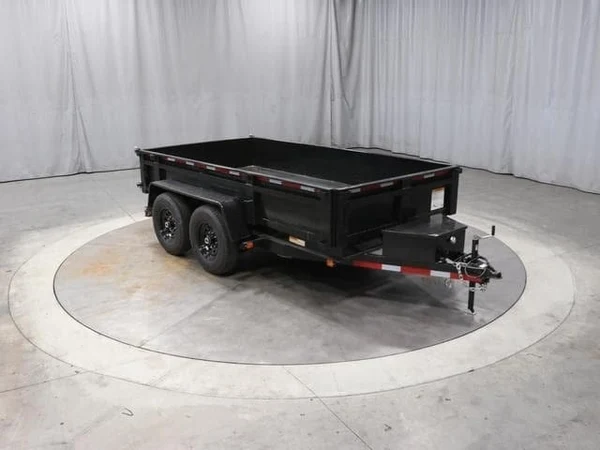

The Carry-On 6 ft. x 12 ft. 12K Low Profile Tandem Axle Dump Trailer is designed for hauling and unloading materials with a low-profile design and durable steel construction. The trailer features a 72 in. x 144 in. steel bed, an 11-gauge steel floor, 18 in. high 14-gauge steel sides, and a 12,000 lb. GVWR.
It is equipped with two 6,000 lb. drop axles with brakes, a 2-5/16 in. A-frame coupler, a 5,000 lb. rated top-wind jack, 16 in. radial tires, and a combination spreader/tail gate. The hydraulic system includes a 12V pump with remote control and gravity-down operation.
Specifications:
- Model: 6X12DUMPLP12K
- Overall Dimensions: 92 in. W x 191 in. L
- Bed Dimensions: 72 in. W x 144 in. L
- Gate Dimensions: 73 in. W x 20 in. H
- GVWR: 12,000 lbs.
- Empty Weight: 3,100 lbs.
- Payload Capacity: 8,900 lbs.
- Volume Capacity: 4 yd.
- Floor: 11-gauge steel
- Sides: 18 in. high, 14-gauge steel
- Frame: 6 in. channel
- Axles: Two 6,000 lb. drop axles with brakes
- Coupler: 2-5/16 in. A-frame
- Tires: 16 in. radial LT235XR16
- Hydraulic Pump: 12V with remote control

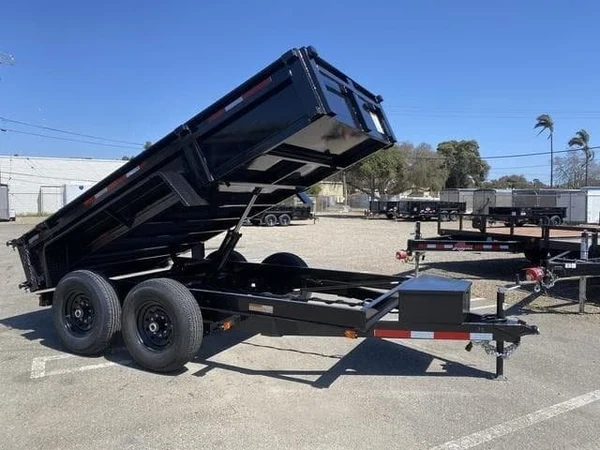

- Hydraulic Operation: Gravity down
- Rear Gate: Combination spreader/tail gate
