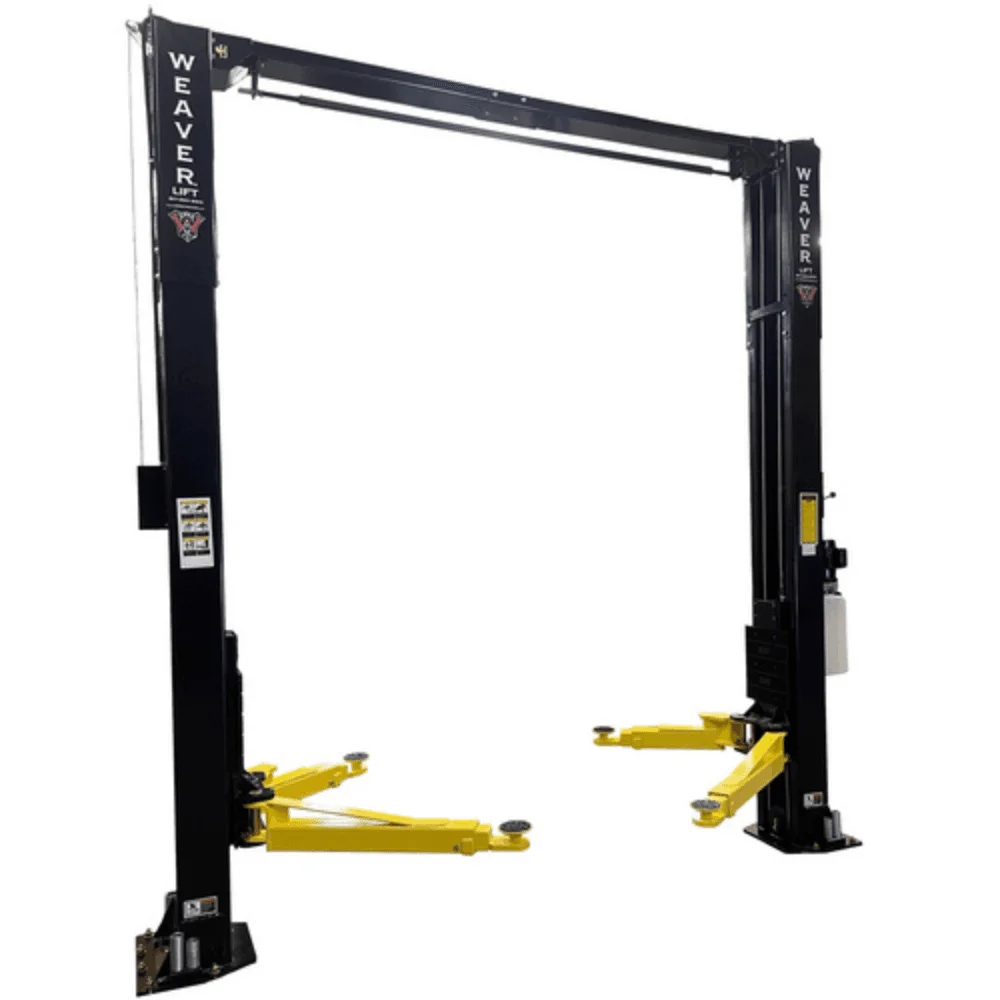

The Weaver W-10KHD is a 10,000-lb-capacity overhead two-post vehicle lift designed for automotive service applications. Its clear-floor configuration keeps the area beneath the vehicle unobstructed, providing convenient access for maintenance and repair work.

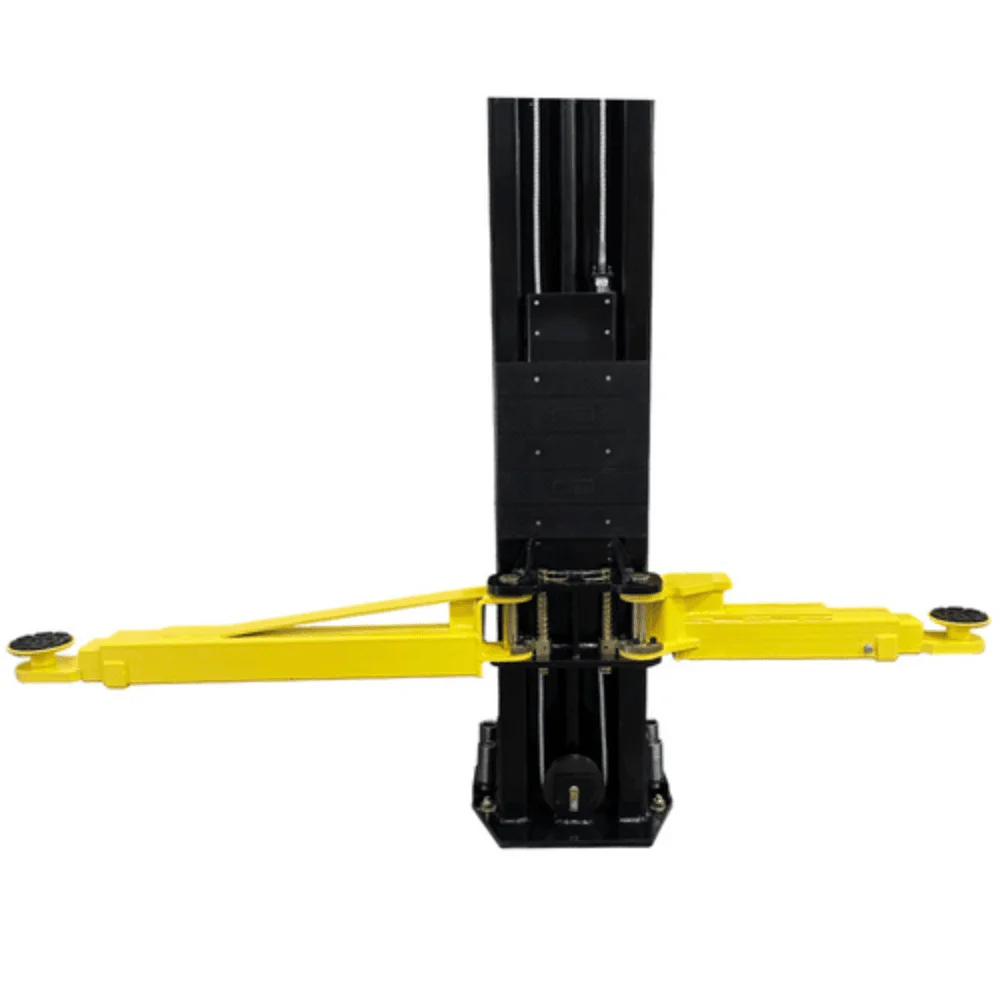

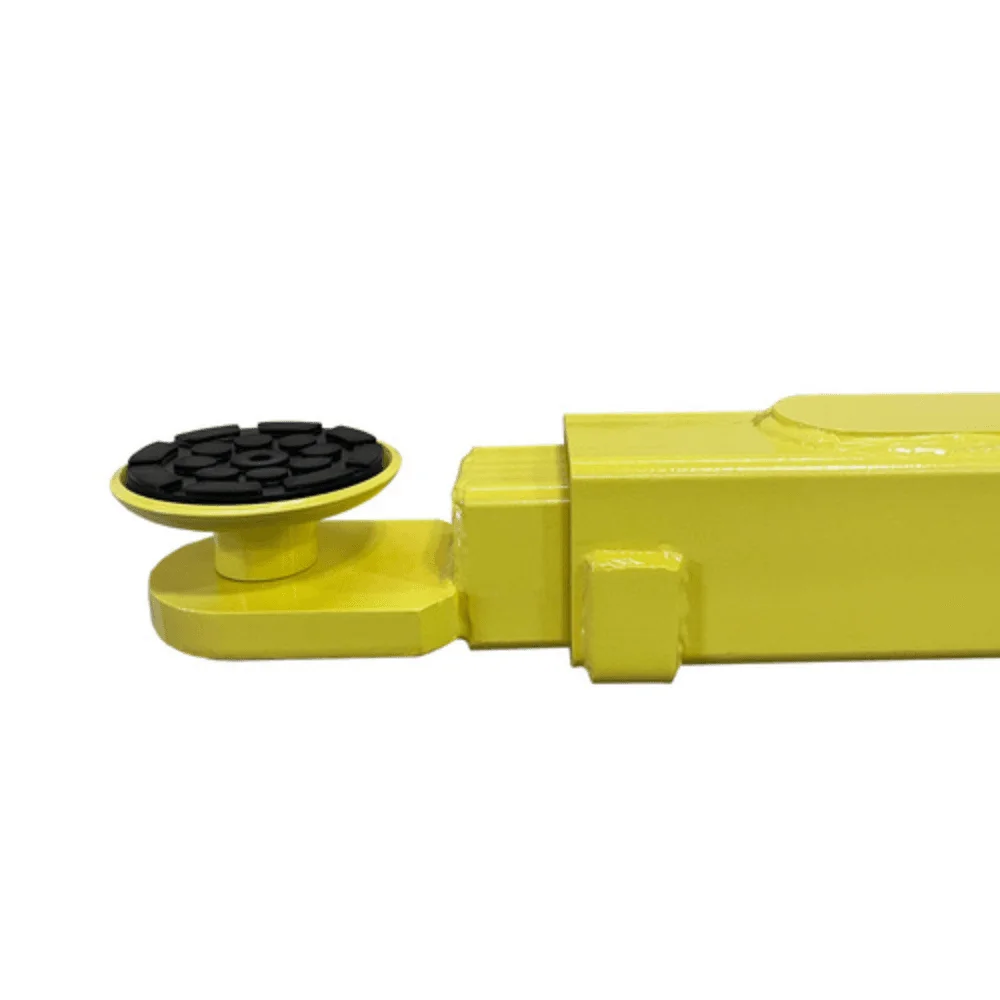

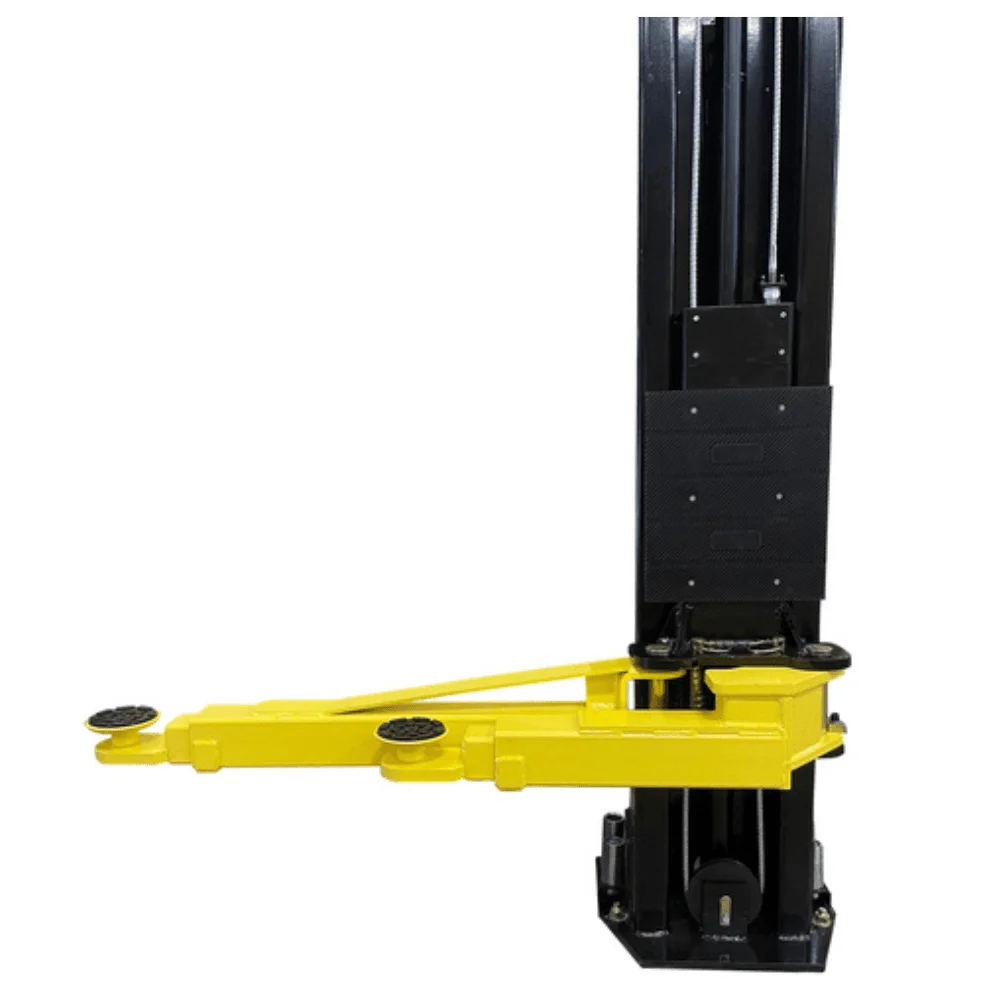

The lift uses dual hydraulic direct-drive cylinders and Super-Symmetric arms with offset front arms and longer two-stage rear arms. This arm configuration allows the lift to accommodate both asymmetric and symmetric vehicle loading.

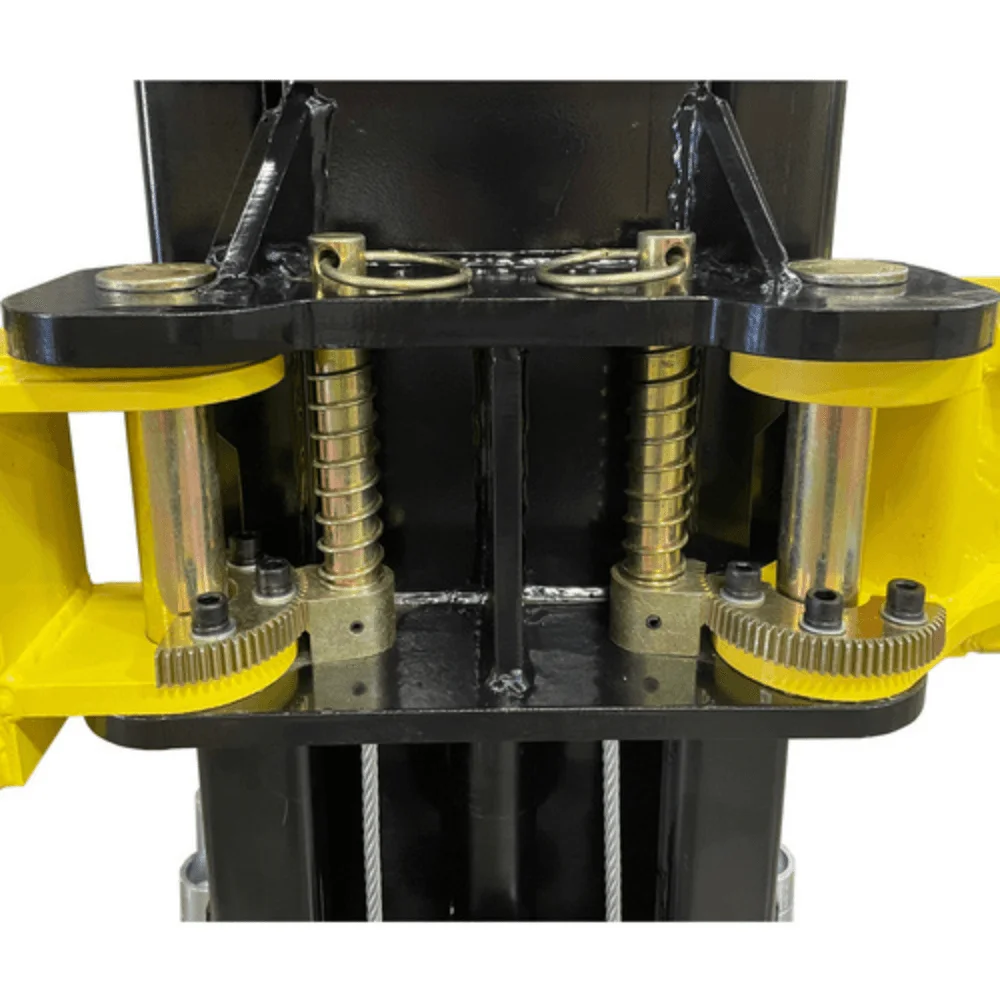

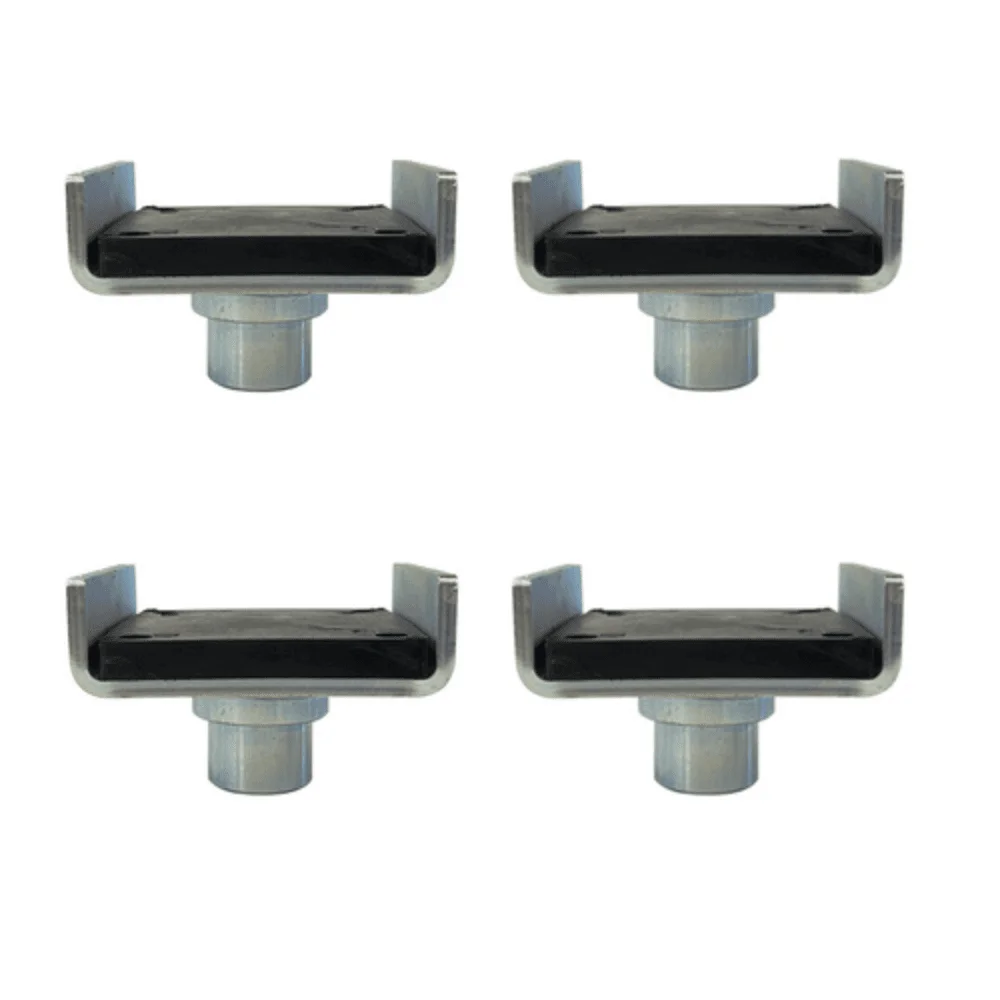

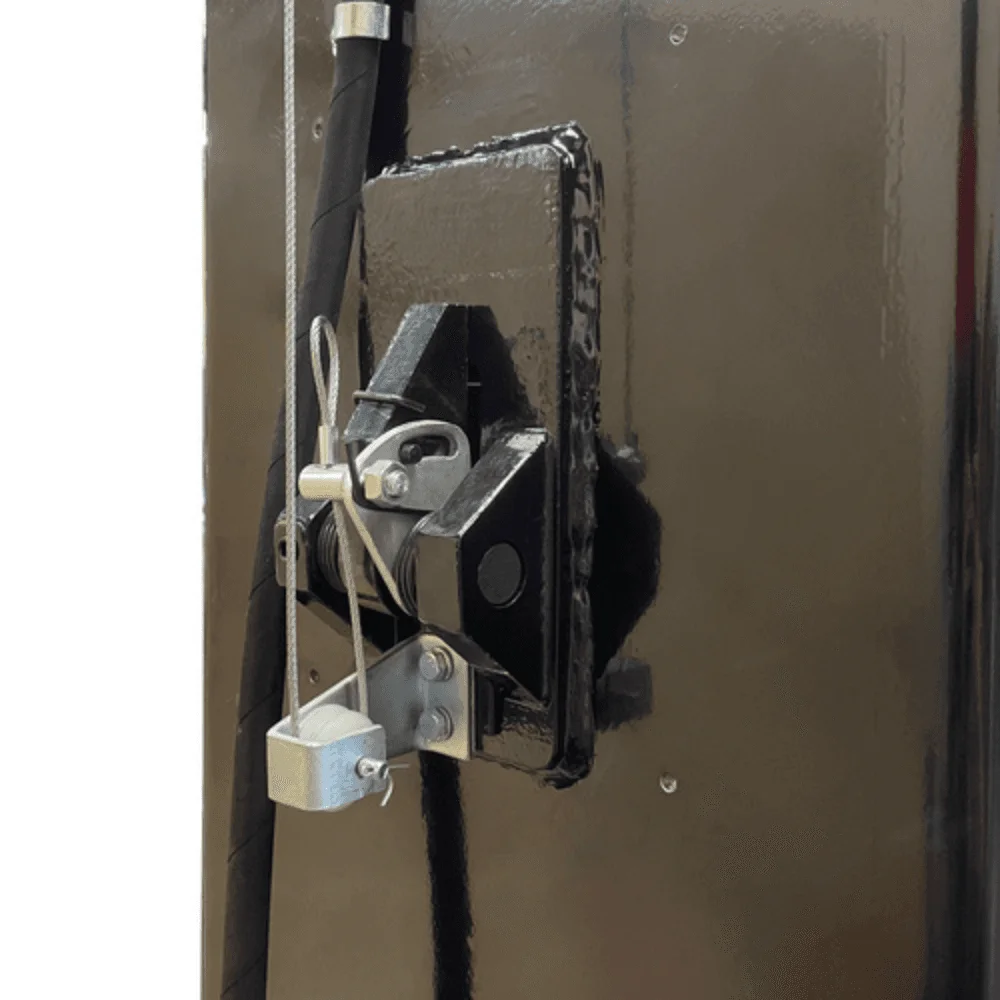

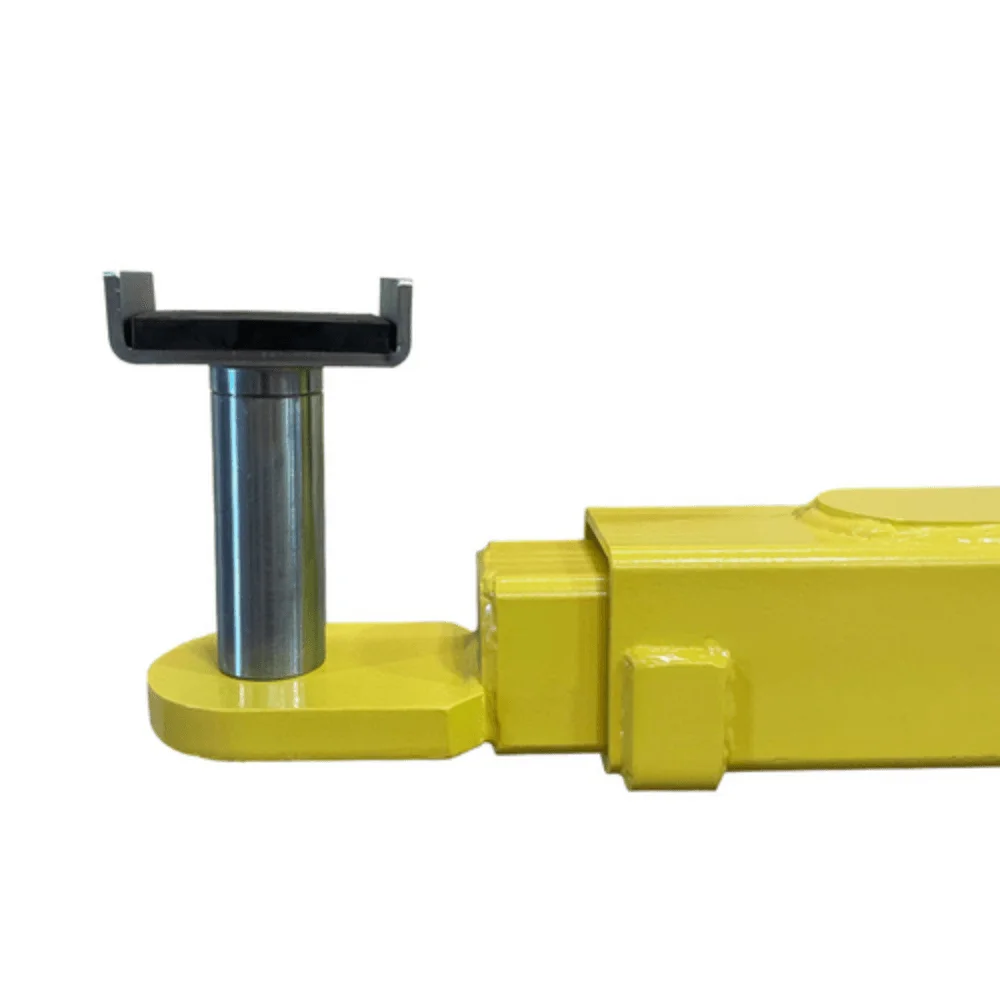

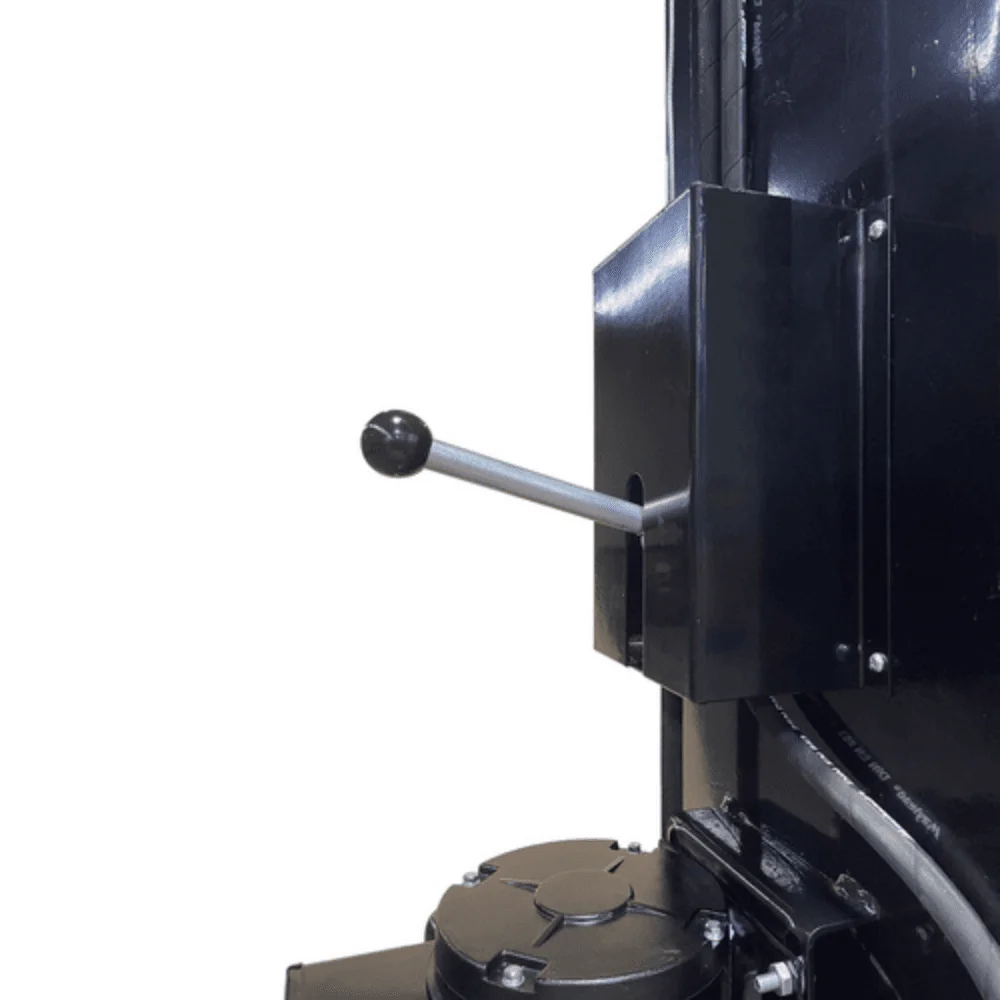

The W-10KHD features a single-point safety release that operates the safety locks on both columns simultaneously. Automatic arm restraints, stackable 2-, 3- and 6-inch adapters, rubber door guards and an overhead safety shut-off device are included.
The lift provides a lifting height of approximately 71.5 to 82 inches with a 4.5-inch minimum pad height. It has 110 inches of clearance between the columns and requires a minimum 4-inch-deep, 3,000 PSI reinforced concrete floor for installation.
The Weaver W-10KHD is powered by a 3 HP, 220V, single-phase motor rated at 30 amps. The manufacturer lists a 5-year structural warranty along with 1-year warranties for the hydraulic cylinders and power unit.
